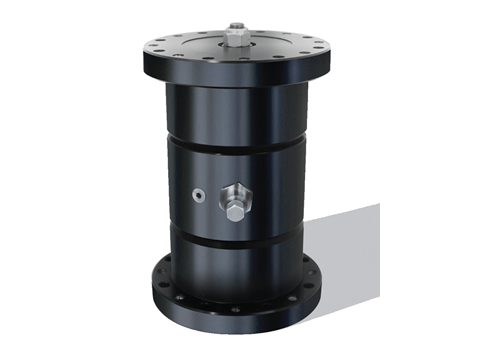

Hydrostatic Spherical Couplings 液压球形联轴器

Overview 总览

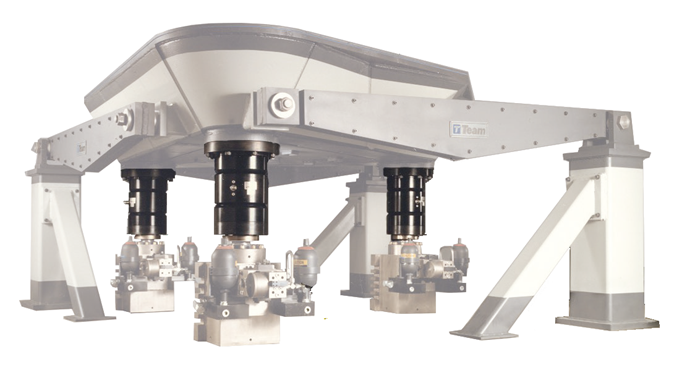

Team Corporation's Hydrostatic Spherical Couplings transmit tensile and compressive forces while allowing angular misalignment. Hydrostatic Spherical Couplings are used in applications for multi-axis vibration, structural fatigue testing, and any application where angular movement is required. Each coupling connects the vibration system (Hydraulic or Electrodynamic) to the table / test article, protecting the system from damage due to misalignment or angular motion.

Single and Double pivot couplings are available, in either 0.5 degree or 6 degree configurations. Our double pivot couplings allow for angular and lateral misalignment. Each spherical surface is hydrostatically lubricated for extremely high stiffness, zero backlash, and infinite life.

Team Corporation的静液压球面联轴器在传递拉力和压力的同时允许出现角度偏差。静力球面联轴器用于多轴振动，结构疲劳测试以及需要角运动的任何应用。每个联轴器都将振动系统（液压或电动）连接到工作台/测试件，以防止系统因未对准或角度运动而损坏。

单和双枢轴联轴器有0.5度或6度配置。我们的双枢轴联轴器可实现角度和横向未对准。每个球形表面都进行了静液压润滑，以实现*高的刚度，零背隙和无限的使用寿命。

Features 特征

• Hydrostatic Bearing Surfaces 静压轴承表面

• +/- 0.5 Degree or 6.0 Degree Angular Rotation +/- 0.5度或6.0度角旋转

• Extremely High Stiffness　*高的刚度

• Zero Backlash 零反冲

• Zero Wear(When oil is maintained to ISO 15-13-10 standards) 零磨损(当油保持ISO 15-13-10标准时)

Applications 应用领域

• Multi Axis Test Systems 多轴测试系统

• Co-Planar Actuators 共面驱动器

• Fatigue Test Sytems 疲劳测试系统

• Custom Test Rig Configurations 定制测试台架配置
