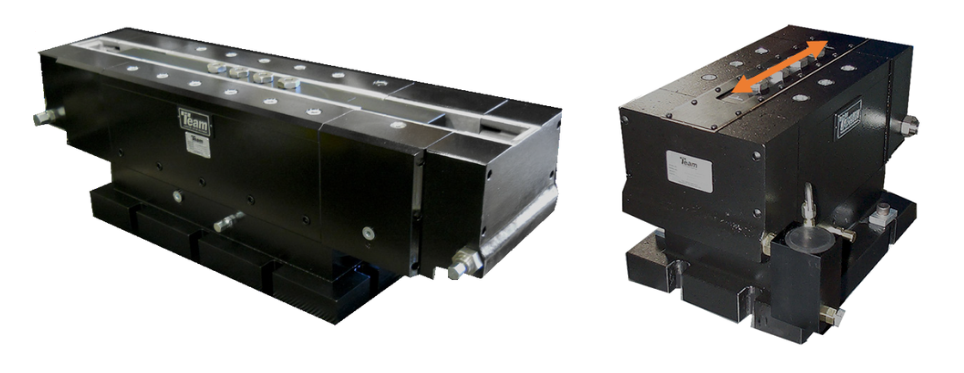

V8 and T8 Bearings V8/T8水平滑动静压轴承

Overview 总览

The V-8 and T-8 Hydrostatic Bearings are Team Corporation's most popular stand-alone bearings. Hydrostatic bearings are supported by a thin film of oil and have non-contacting surfaces providing zero friction, and low noise. The V-8 and T-8 are easy to use, cost-effective, and virtually maintenance-free. The base of each bearing features an "air pad" to facilitate movement and alignment. A filter on the inlet line assures that only clean oil reaches the bearing. Each bearing can carry as much as 10,000 lbs (4535 kg) of vertical load capacity, so most test packages can be accommodated with 4 or 6 bearings.

T-8 and V-8 bearings are designed for use with electrodynamic and servohydraulic shakers with a maximum 2 in. (50mm) of stroke.

V-8和T-8静压轴承是Team Corporation公司*受欢迎的独立轴承。静压轴承由油膜支撑，并具有非接触表面，可提供零摩擦和低噪音。V-8和T-8易于使用，具有成本效益且几乎无需维护。每个轴承的底部都有一个“气垫”，以方便移动和对齐。进口管路上的过滤器可确保只有干净的油才能到达轴承。每个轴承可承受多达10,000磅（4535千克）的垂直载荷，因此大多数测试包可容纳4或6个轴承。

T-8和V-8轴承设计用于**行程为2英寸（50毫米）的电动和伺服液压振动器。

Features 特征

• * bearing system available. *坚固的轴承系统。

• Easily stored when not in use. 不使用时易于存放。

• Air pad for ease of movement and alignment 气垫，便于移动和对齐

• Low-maintenance 低维护

• 2.5 inch (63.5 mm) stroke 行程2.5英寸（63.5毫米）

• 10,000 lb (44.5 kN) vertical load 10,000磅（44.5 kN）垂直载荷

Applications 应用领域

• Slip Table Expansion Outriggers 滑台扩展支腿

• Guidance of Heavy or Oversized Test Specimens 重型或超大型试样的导向

• Create Custom Slip Table for Heavy Test Articles 为重型测试试件创建自定义滑动台面

• Support Oversize Horizontal Fixtures 支持超大水平夹具
