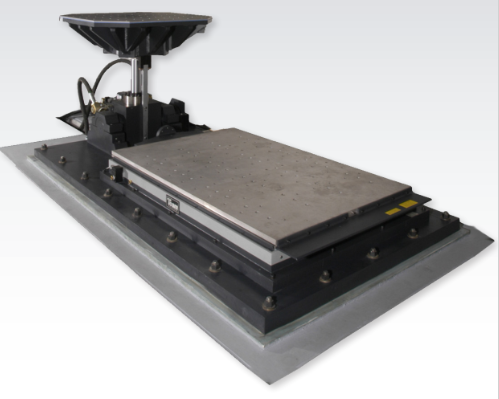

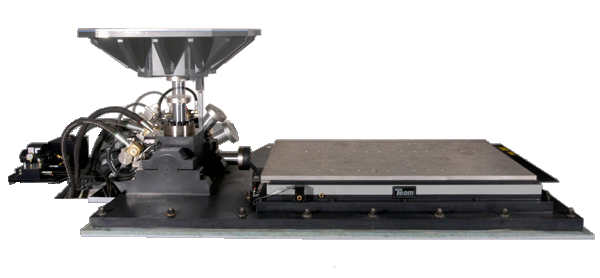

Vertical and Horizontal Vibration System 垂直与水平振动系统

Overview　总览

Team Corporation's vertical vibration system is particularly advantageous for vibration tests requiring high force, long stroke or very low frequency capability. With control software options of sine, random, sine on random, random on random, or resonant search & dwell, your Team vertical vibration system will provide consistent, reliable test results year after year.

Team Application Engineers will evaluate your requirements and determine the appropriate actuator force, stroke and velocity requirements to provide the highest frequency response within your budget constraints. Team vertical vibration systems are available with an air isolated seismic base that will eliminate low frequency vibration transfer and allow placement in your test facility with no modifications to the standard industrial floor structure.

Team Corporation公司的垂直振动系统特别适合要求高输出力，长行程或极低频能力的振动测试。借助正弦，随机，正弦随机，随机随机或共振搜索和驻留的控制软件选项，您的Team垂直振动系统将可年复一年地提供可靠一致的测试结果。

Team应用工程师将评估您的要求，并确定适当的执行器力，行程和速度要求，以在您的预算限制内提供*高的频率响应。Team垂直振动系统带有空气隔离的地震基座，可消除低频振动传递，并允许将其放置在测试实验室设施中，而无需修改标准工业地板结构。

Vertical Features　垂直台特征

• Team valve for over 500 Hz. capability   Team公司液压阀的频率超过500 Hz

• Force range: 2,000 - 50,000 lb. (9 kN to 222 kN) 力范围：2,000-50,000磅。（9 kN至222 kN）

• Dynamic Stroke range 50mm - 255mm 动态行程范围：50mm - 255mm

• Magnesium or Aluminum head expanders 镁或铝扩展头

• Standard head expander sizes 24in -72in (600 mm-1.8m) 标准扩展头尺寸24英寸-72英寸（600毫米-1.8m）

• Air isolated seismic bases 空气隔离地震基地

• System designed for high frequency vibration testing from the base up 从根本上设计用于高频振动测试的系统

• Hydrostatic bearing supported piston 静压轴承支撑活塞

• No annual teardown / seal replacement 无需每年拆卸/更换密封

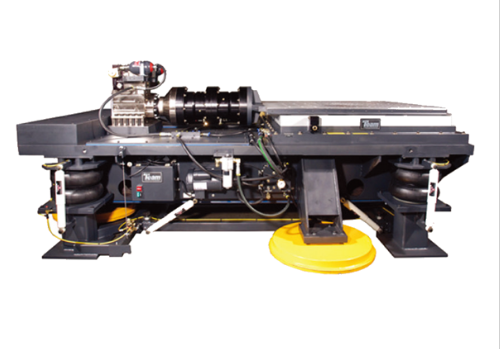

Horizontal Features　水平台特征

• Team valve for over 500 Hz capability Team公司液压阀的频率超过500 Hz

• Force range: 2023 - 50,000 lbf (9 - 222 kN) 力范围：2,000-50,000磅。（9 kN至222 kN）

• Dynamic Stroke range: 2 - 10 in (51 - 254 mm) 动态行程范围：50mm - 255mm

• Standard Slip Table Sizes from 24 - 80 in (610 - 2032 mm) 标准滑台尺寸24英寸-80英寸（600毫米-2.032m）

• Air isolated seismic bases 空气隔离地震基地

• System designed for high frequency vibration testing from the base up   从根本上设计用于高频振动测试的系统

• High overturning moment capacity 高倾覆力矩能力

Applications 应用领域

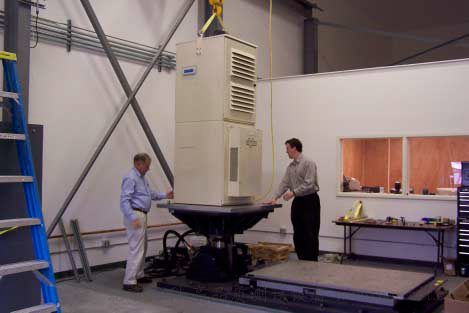

• Package Testing – Large Screen Televisions, Computer Monitors 包装测试–大屏幕电视，计算机显示器

• Automotive Seat, Instrument Panel, 4-Post systems 汽车座椅，仪表板，4柱式系统

• Buzz, Squeak and Rattle Quality Testing 嗡嗡声，嘎嘎声异响质量测试

• Engine and Engine Accessory Testing 发动机和发动机附件测试

• Military Transportation Canister Testing 军事运输罐测试

• Bridged Test Article Testing Utilizing Dual Vertical Systems 利用双垂直系统进行桥接测试

• Product Qualification Testing 产品鉴定测试
