Tensor 900 6 DoF Vibration| 6自由度振动系统

Overview 总览

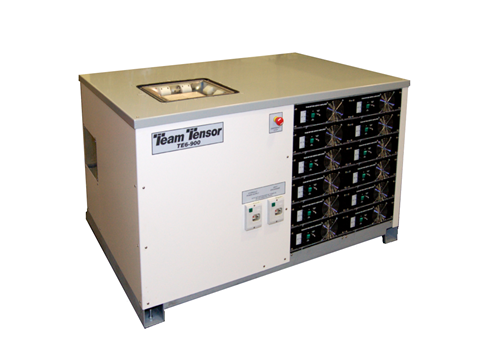

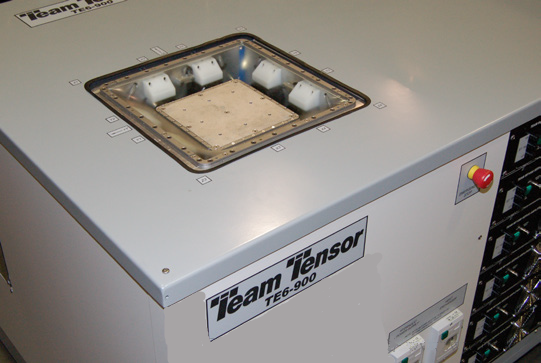

Tensor 900™ is a fully contained multi-axis vibration test system capable of precise control of all six degrees of freedom through a 5 kHz bandwidth. The system can reproduce real world vibration environments by simultaneously exciting all three linear translations, as well as all three rotations, to a frequency level never before achieved. This unprecedented performance has been made possible through the use of Team Corporation's expertise in hydrostatic bearing design and multi-axis system engineering. Team Corporation´s addition to the TENSOR™ Family of Multi-Axis Test Systems provides unmatched performance in high-frequency, simultaneous excitation.

Tensor 900™是一个完全集成化的多轴振动测试系统，能够在5kHz带宽范围内精确控制所有六个自由度。该系统可以将所有三个线性平移机构以及三个旋转机构同时激发到****的频率水平，来重现现实世界的振动环境。通过使用Team Corporation在静压轴承设计和多轴系统工程方面的专业知识，可以实现这种****的性能。Team Corporation的TENSOR™多轴测试系统在高频同步激励方面提供了****的性能。

Features　特征

• Simultaneous or sequential excitation of X, Y, and/or Z axes 同步或顺序激励X，Y和Z轴

• Sine Force Rating of 200 lb-f (900 N) Random Force Rating 135 lb-f (600N)　正弦推力200 lb-f（900 N）随机推力135 lb-f（600N）

• Complete control of rotations around all axes　围绕所有轴的旋转完全同步控制

• Bandwidth from 10 Hz through 5 kHz 10Hz至5kHz的带宽

• 15 Grms (22g Sine Bare Table) acceleration on nominal payload　标称有效载荷上的加速度为15g（22g正弦裸机）

• Fully contained system (electrical power only requirement)　全封闭系统（仅供电要求）

•

Applications应用领域

• PCB Testing, tin whisker research   PCB板测试，锡晶研究

• Accurate replication of true vibration environments in all 6 DoF　 在所有6个自由度中准确复制真实的振动环境

• Accelerated durability life cycle and fatigue testing　加速耐久性寿命周期和疲劳测试

• Product development Testing　产品开发测试

• Rapid screening of electrical components and modules 快速筛选电气组件和模块

• Addresses new multi-axis protocol in MIL STD 810 (G) 　解决MIL STD 810（G）中的新多轴协议
