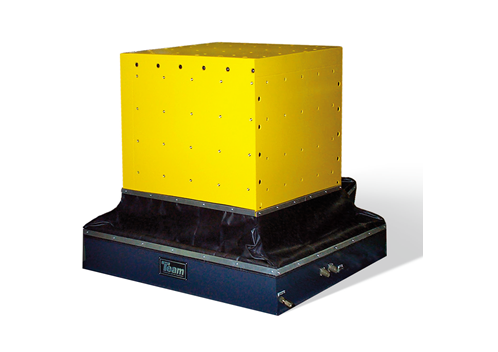

The Cube 6 DoF Vibration | 立方体6自由度振动系统

Overview 总览

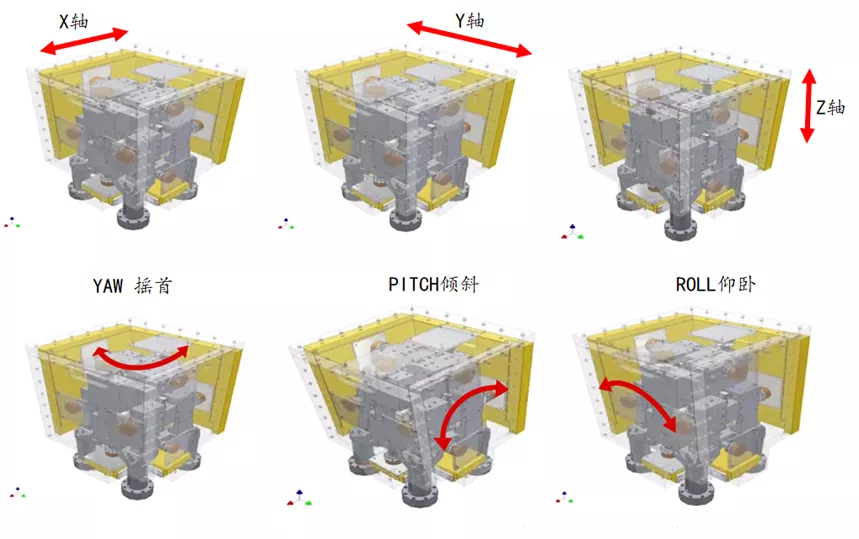

since 1994, Team Corporation has taken 6 Degree of Freedom testing capability to new levels. An advanced technology hydraulic test system that offers 6 Degrees of Control, the CUBE can accurately replicate virtually any vibration environment, including very high frequencies, with precise digital control. The CUBE simulates real world 6 Degree of Freedom vibration with complete, simultaneous control of the amplitude and phase of all 6 Degrees of Freedom.Offering simultaneous or sequential excitation of test articles in Sine, Random and Time Wave Form Replication, the CUBE sets the standard for multi-axis vibration testing.

自1994年以来，Team Corporation已将6自由度测试功能提高到了新的水平。先进的液压测试系统提供6个自由度的精确控制，CUBE可以通过精确的数字控制来精确复现几乎任何振动环境，包括**高的频率。CUBE通过完全同时控制所有6个自由度的幅度和相位来模拟真实世界的6个自由度振动。CUBE提供正弦波，随机波和时间波形复现，测试物品可以同时或顺序激励，CUBE设置了多轴振动测试的标准。

Features 特征

• Force rating of 14,000 lbf. (62 kN) in each axis 额定力为14,000磅力，每个轴（62 kN）

• Six * * Integrated Shakers provide precise, simultaneous or sequential control of all 6 Degrees of Freedom to beyond 500 Hz.六个获得**的集成式振动台可在所有6个自由度提供精确同步或顺序控制，频率超过500Hz。

• Excellent replication of measured data to higher frequencies than ever before　出色地将测量数据复现到比以往更高的频率

• Standard 50mm displacement in X-Y-Z. Available 100mm vertical displacement. XYZ标准位移50mm。可选100mm垂直位移。

• Hydrostatic bearings assure long life and low maintenance　静压轴承确保长寿命和低维护成本

• Small 48 inch X 48 inch (1.2M x 1.2M) footprint　小尺寸48英寸X 48英寸（1.2M x 1.2M）占地面积

• Five active mounting surfaces allow simultaneous unit testing　五个安装表面允许同时进行多单元测试

• Available Head Expanders increase the mounting surface according to your test article requirements　可选的头部扩展台根据您的测试物品要求增加安装表面积

• Available thermal barrier for use with environmental chamber　可用于三综合环境室的隔热垫

Applications　应用

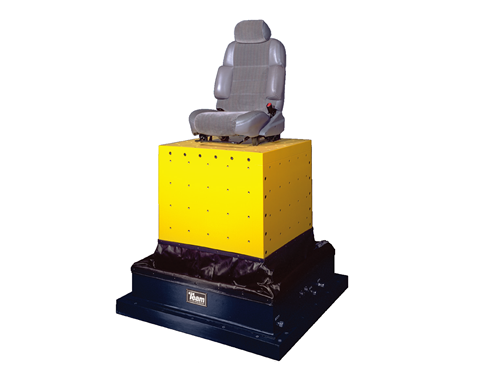

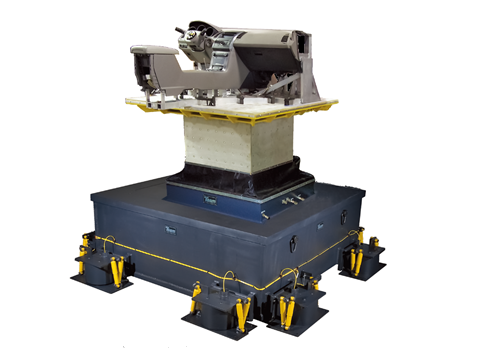

• Automotive Component Testing 汽车零部件测试

• Automotive Suspension Testing 汽车悬挂测试

• Battery Testing 电池测试

• Buzz, Squeak and Rattle Testing   嗡嗡声、吱吱声和嘎嘎声，异响测试

• Avionics Testing 航天电子测试

• Package Testing 包装测试

• Military Transportation Canister Testing 军用运输罐测试

CUBE 应用案例演示：
