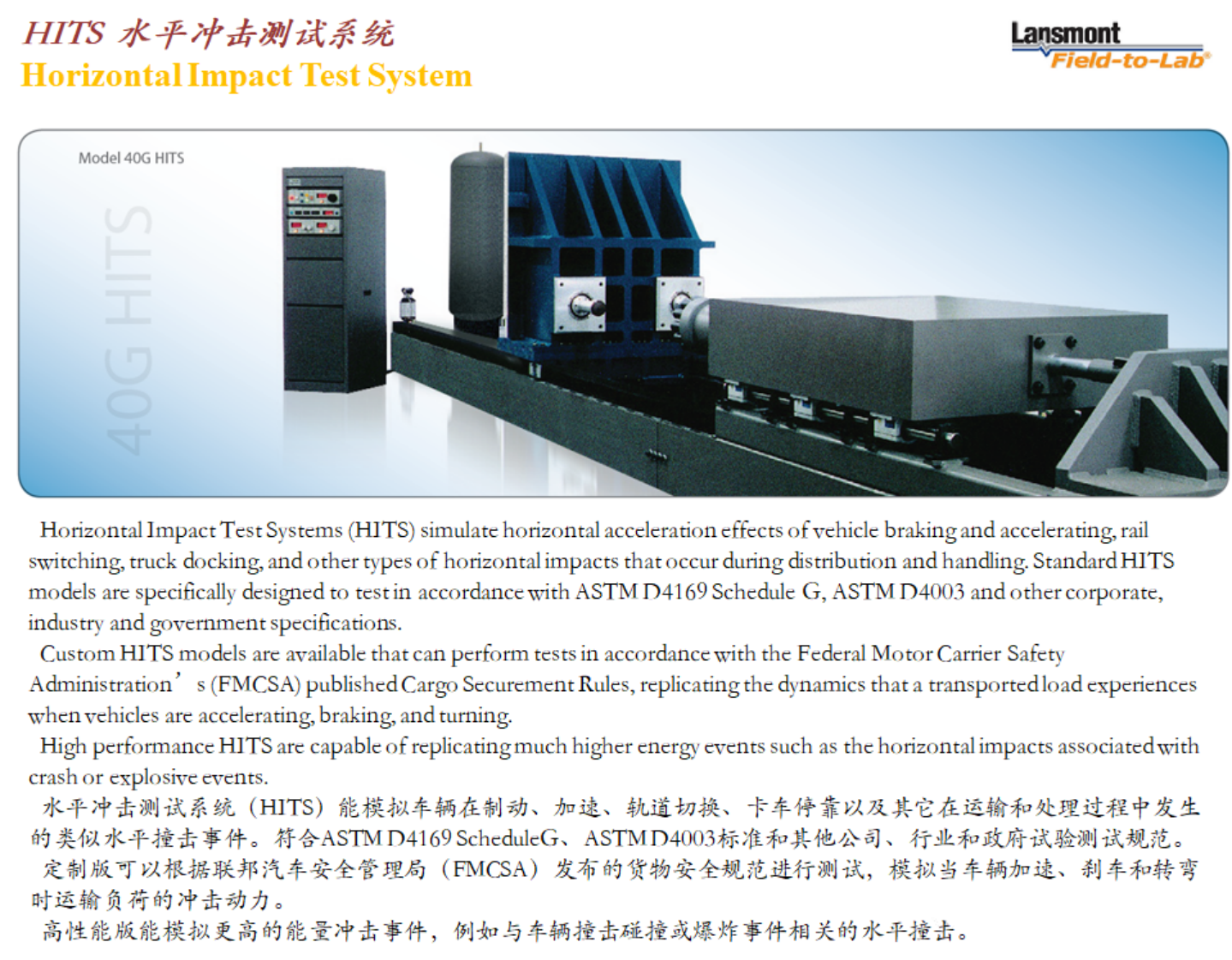

HITS   水平冲击测试系统

Horizontal Impact Test System

Horizontal Impact Test Systems (HITS) simulate horizontal acceleration effects of vehicle braking and accelerating, rail switching, truck docking, and other types of horizontal impacts that occur during distribution and handling. Standard HITS models are specifically designed to test in accordance with ASTM D4169 Schedule G, ASTM D4003 and other corporate, industry and government specifications.

Custom HITS models are available that can perform tests in accordance with the Federal Motor Carrier Safety Administration’s (FMCSA) published Cargo Securement Rules, replicating the dynamics that a transported load experiences when vehicles are accelerating, braking, and turning.

High performance HITS are capable of replicating much higher energy events such as the horizontal impacts associated with crash or explosive events.

水平冲击测试系统（HITS）能模拟车辆在制动、加速、轨道切换、卡车停靠以及其它在运输和处理过程中发生的类似水平撞击事件。符合ASTM D4169 ScheduleG、ASTM D4003标准和其他公司、行业和政府试验测试规范。

定制版可以根据联邦汽车安全管理局（FMCSA）发布的货物安全规范进行测试，模拟当车辆加速、刹车和转弯时运输负荷的冲击动力。

高性能版能模拟更高的能量冲击事件，例如与车辆撞击碰撞或爆炸事件相关的水平撞击。

参考标准

ASTM D4003 - 98(2015) Standard Test Methods for Programmable Horizontal Impact Test for Shipping Containers and Systems

ASTM D4169 - 16 Standard Practice for Performance Testing of Shipping Containers and Systems

GB∕T 4857.15-2017 包装 运输包装件基本试验 第15部分：可控水平冲击试验

GB∕T 4857.17-1992 运输包装件 编制性能试验大纲的一般原理

GB∕T 4857.18-1992 运输包装件 编制性能试验大纲的定量数据

产品特点 Features Highlights:

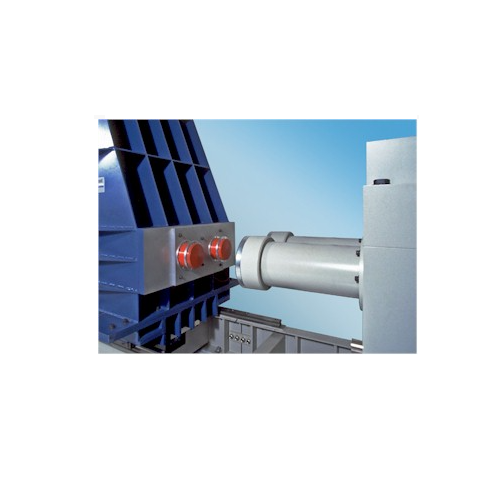

HITS Programmer 冲击波形发生器

The HITS programmer design simulates a variety of cushioned draft gear railcar impacts or other low amplitude, long duration events. It consists of a pneumatic cylinder mounted to the seismic mass, a plunger with elastomer modules mounted to the carriage’s vertical bulkhead, and a pressure controller. The plunger and elastomers control the rise and decay of the trapezoidal pulse, and the cylinder controls the acceleration level, according to its internal pressure.

HITS冲击波形发生器模拟产生各种缓冲齿轮轨道车撞击或其他低振幅、长时间事件。它由一个安装在消震质量上的气动气缸组成，一个装有弹性体模块的柱塞，安装在车厢的垂直舱壁上，还有一个压力控制器。柱塞和弹性体控制梯形脉冲的上升和衰减，柱体根据其内部压力控制加速度水平。

HITS Reaction Mass 冲击消振质量块

The seismic reaction mass is a massive, solid steel structure which rides on rails and bearing which are independent from the carriage. It is restrained by a snubbing cylinder specially designed for the purpose. The seismic mass serves to isolate the high shock forces from the floor so that no large concrete foundation or buttress backstop is required.

消震反应质量块是一个巨大的、坚固的钢结构，它用轴承安装在轨道上,独立于装载车厢。它用一个专门专门设计的圆筒固定。消震质量块可以衰减高冲击能量传递到地面来，这样就不需要大的混凝土基础或支撑结构。

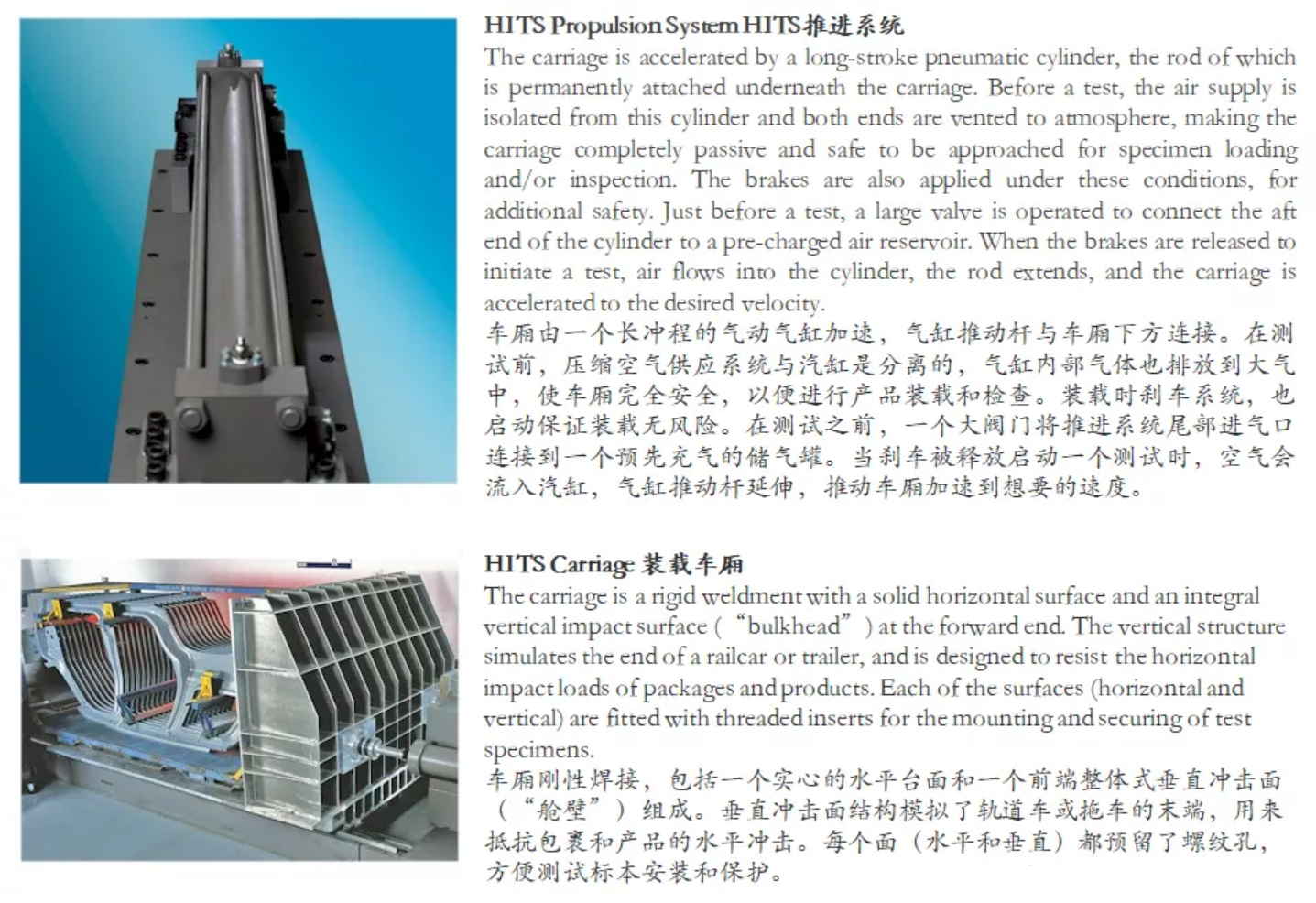

HITS Propulsion System HITS推进系统

The carriage is accelerated by a long stroke pneumatic cylinder, the rod of which is permanently attached underneath the carriage. Before a test, the air supply is isolated from this cylinder and both ends are vented to atmosphere, making the carriage completely passive and safe to be approached for specimen loading and/or inspection. The brakes are also applied under these conditions, for additional safety. Just before a test, a large valve is operated to connect the aft end of the cylinder to a pre-charged air reservoir. When the brakes are released to initiate a test, air flows into the cylinder, the rod extends, and the carriage is accelerated to the desired velocity.
